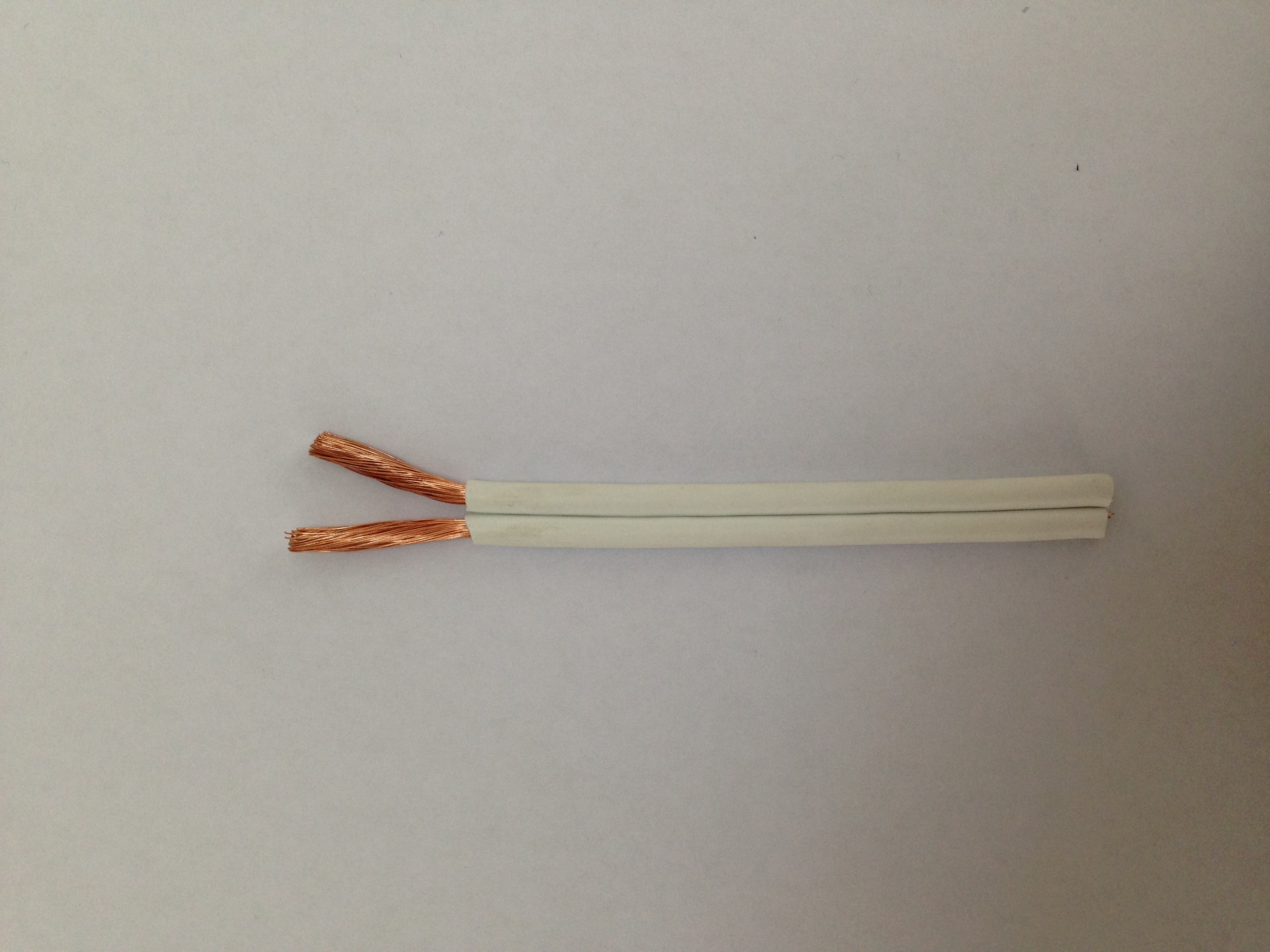

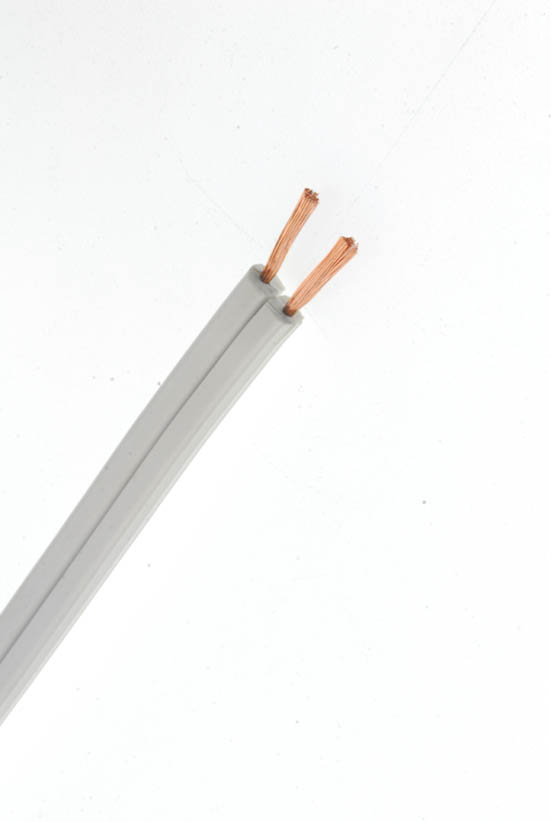

SPT CABLE

Standard: GB5023.5-1997,UL&ROHS.
Application: Medium or light type movable electric appliances instruments, household appliances
Structure: Pure copper or CCA, PVC insulation
Rated Voltage: 300/500V, 450/750V
Working temperature: 60degree, 75degree, 90degree, 105degree.
Color: White, Black, Yellow, Red, Blue, etc
Package: plastic films,Ploy Bag, Paper Box, Plastic Spool

Reference Standard: UL 62  approved			Rated Voltage: 300V	Rated Temperature: 60°C –105°C
Conductor: Stranded Bare Copper/copper clad Aluminum (CCA)				Insulation : PVC
	AWG/No.of cores	NO./Normal Diameter of strand(mm)		Normal Thickness of Insulation(mm)	Over Diameter of Cable(mm)
SPT-1	20 x 2c	21/0.18		0.78	2.55 x 5.1
	18 x 2c	41/0.16		0.76	2.7 x 5.4
	18 x 3c	41/0.16		0.76	2.7 x 8.0
SPT-2	18 x 2c	41/0.16		1.14	3.4 x 6.8
	16 x 2c	65/0.16		1.14	3.7 x 7.4
	18 x 3c	41/0.16		1.14	3.5 x 8.6
	16 x 3c	65/0.16		1.14	3.8 x 9.6
SPT-3	18 x 2c	41/0.16		1.52	4.4 x 8.7
	16 x 2c	65/0.16		1.52	4.8 x 9.5
	14 x 2c	41/0.254		2.03	6.0 x 12.0
	12 x 2c	65/0.254		2.41	7.4 x14.0
	10 x 2c	105/0.254		2.79	9.1x18.2
	18 x 3c	41/0.16		1.52	4.4 x 10.7
	16 x 3c	65/0.16		1.52	4.8 x 11.8
	14 x 3c	41/0.254		2.03	6.0 x 14.5
	12 x 3c	65/0.254		2.41	7.4x16.5
	10 x 3c	105/0.254		2.79	9.1 x 18.8
